Shipment

Vending Machine Shipment and Shipment Status Query

Shipment Command

Vending Machine Shipment

Channels List, row is 10, column is 10
Layer 1	0	1	2	3	4	5	6	7	8	9
Layer 2	10	11	12	13	14	15	16	17	18	19
Layer 3	20	21	22	23	24	25	26	27	28	29
Layer 4	30	31	32	33	34	35	36	37	38	39
Layer 5	40	41	42	43	44	45	46	47	48	49
Layer 6	50	51	52	53	54	55	56	57	58	59
Layer 7	60	61	62	63	64	65	66	67	68	69
Layer 8	70	71	72	73	74	75	76	77	78	79
Layer 9	80	81	82	83	84	85	86	87	88	89
Layer 10	90	91	92	93	94	95	96	97	98	99

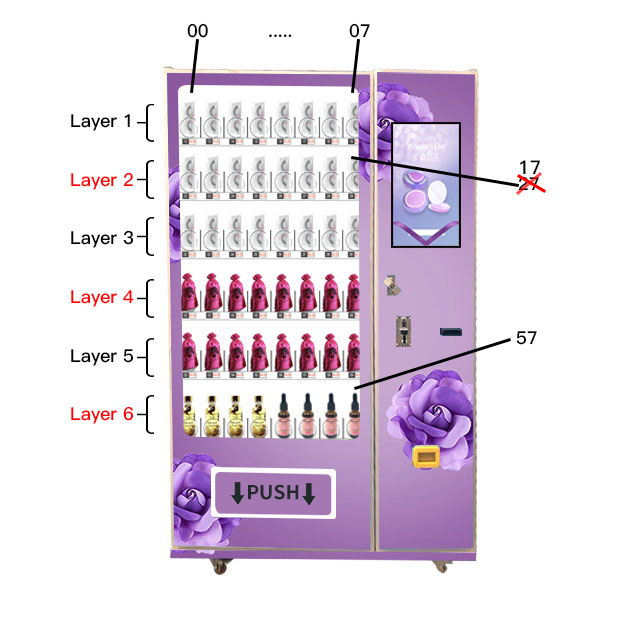

The list of channels for the physical vending machine is shown in the image.

// serial driver
private lateinit var driver: UBoard

fun your_method() {
    SReplyPara(
        addr,
        no % 100,
        type,
        check,
        lift,
    ).apply {
        driver.Shipment(this)
    }.apply {
        if (!this.isOK) {
            throw Exception("shipping failed")
        }
    }
}

SReplyPara Attribute Description

Attribute	Type	Default Value	Description
addr	int		Slave address.
no	int		Channel number, where 00 corresponds to the motor of the first channel in the first row and first column.
type	int		Channel type:
			1 — Spring motor
			2 — Electromagnetic lock
			3 — Conveyor belt channel
			4 — Motor timing control
			0 — Auto recognition (not recommended)
check	bool		Whether to enable drop detection.
lift	bool		Whether to enable the elevator.

Note: The slave addr, by default is 1. If you have a vending machine is combo type, the addr may vary.

If the number of combinations is greater than 1, the address of the second machine will be 2, with a maximum support for 8 machines.

GetShipmentStatus

Query the shipment status of the driver board.

val para = SSReplyPara(
    addr
).apply {
    driver.GetShipmentStatus(this)
}.apply {
    if (!this.isOK) {
        throw Exception("get shipment status failed")
    }
}

println("runStatus: ${para.runStatus}")
println("faultCode: ${para.faultCode}")

argument	type	default value	description
addr	int		Slave address.

SSReplyPara Attribute Description

Attribute	Type	Default Value	Description
runStatus	int		0 - Idle
			1 - Dispensing (Busy)
			2 - Dispensing Complete (Success)
			3 - Fault Status (Failure)
faultCode			Fault code (refer to the fault code table)
			0 — No error

Fault code table

Fault codes and descriptions.

Code	Name	Description
0	Normal	No error
1	Invalid Function Code	The slave received a function code that cannot be executed. After issuing a query command, this code indicates no program functionality.
2	Invalid Data Address	The received data address is not allowed by the slave.
3	Invalid Data	The queried value in the data area is not allowed by the slave.
4	Checksum Error	Checksum error, the master should resend the data request as per the slave's requirement.
6	Slave Device Busy	The slave is busy processing a long-duration command. The master should send the request when the slave is idle.
7	Slave Device Fault	An unrecoverable error occurred while the slave was executing the master's requested action.
8	Acknowledgement	The slave has received the request and is processing the data, but it requires more time. To prevent a timeout error on the master, this acknowledgment response is sent. The master can then send a "query program completion" to determine if the slave has finished processing.
